| Door size in mm | Opening Width max.
Opening Height max. |
6000
6000 |
| Average speed | Opening in m/s variable
Closing in m/s variable |
0.6m/s~1.2m/s, based on the door size.
0.6m/s~0.8m/s |
| Door panel | PVC + Aluminum Windbars + Bottom Aluminum Profile + Rubber seal | PVC cord fabric, PVC coated fabric with a mesh of high-strength fibers, with a thickness of 0.8mm, composed of high-strength polyethylene coated polyester mesh belt and streamlined glass fiber reinforcement, with high wear resistance. |
| Door panel | PVC Color
Yellow, White, Grey, Orange, Blue |

There is a certain color difference, subject to the actual product. |

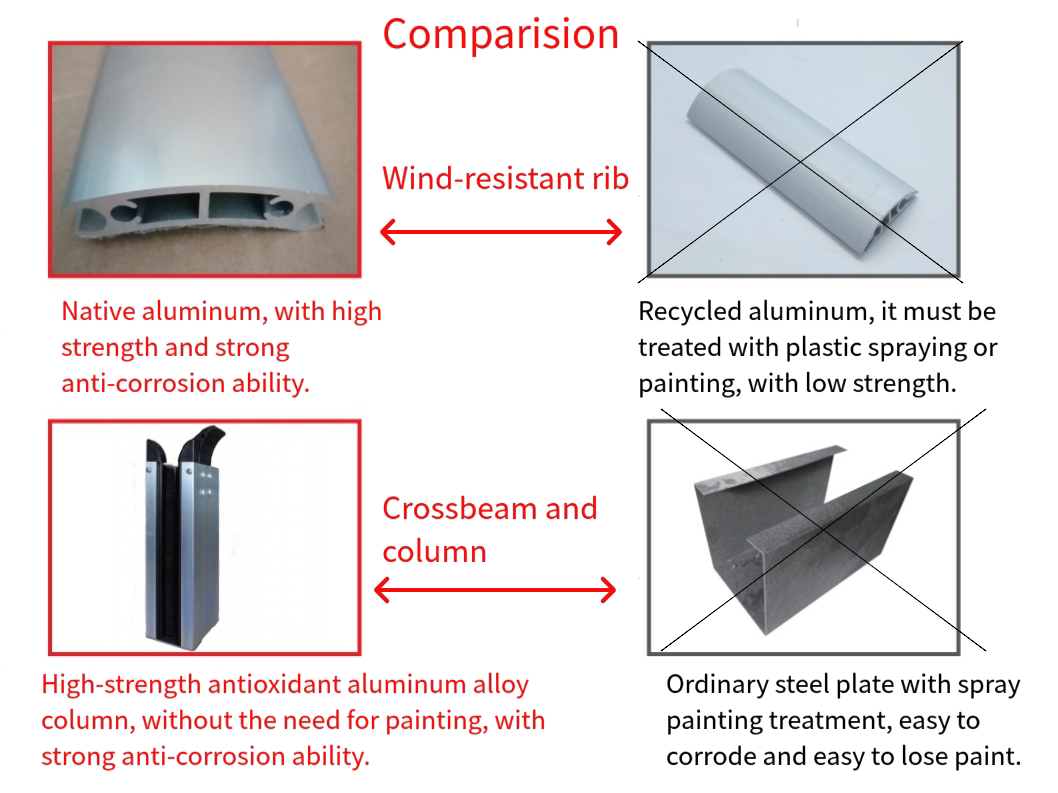

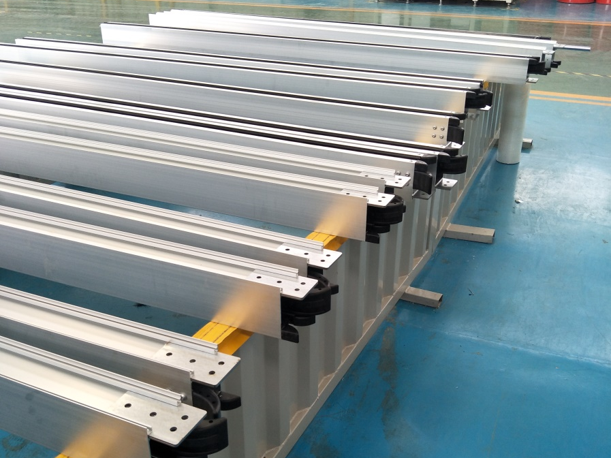

| Aluminum Windbars |  |
Primary aluminum material with high strength and strong corrosion resistance
|
| Bottom seal |  |
The aluminum bottom profile with EPDM rubber strip, which can effectively solve the bottom sealing problem. |
| Seal
|
Side seal | The column adopts double sealing structure of brush + rubber strip, which is more effective in insect and dust prevention. |

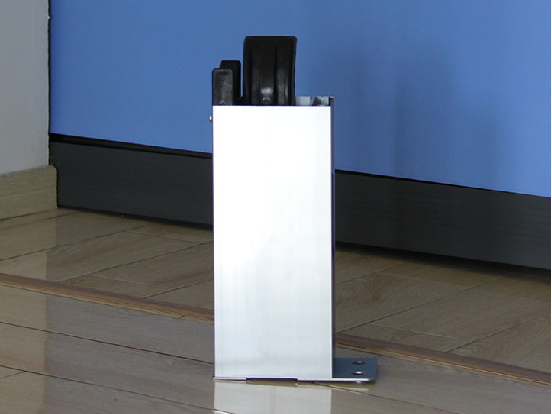

| Column |  |
Aluminum with anodized surface treatment.
Two-cavity structure to separate the guide rail with the wiring that is safer.
Stainless steel columns are optional. |

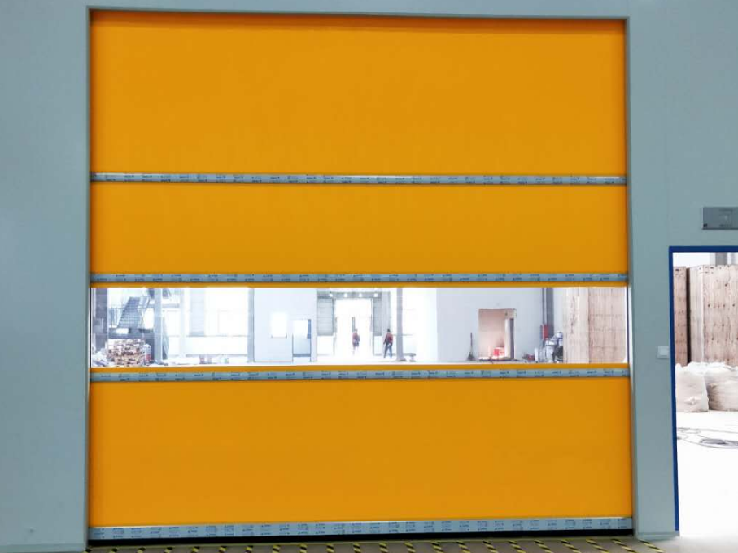

| Transparent window |  |
PVC, 1.2mm thick. Good light transmittance, convenient for pedestrians and vehicles to observe and use |
| Power
|
Power supply
Power frequency |
1N ~ AC200-240V
50/60 Hz |
| Drive | Servo motor
0.75kW, 1.5kW and 2.2kW Based on the door size |
Servo motor has high accuracy, long service life, low failure rate, and is equipped with a servo control system for more precise control |
| Control panel | Servo controller | Servo controller with Chinese and English language display for easy setting, speeds management, Open/Stop/Close/ Emergency Stop buttons. 3 operating modes. |
| Safety | Photo eyes | One pair of photo eyes
Photo eyes act as a safety device to prevent the door from closing if an object or person is within the photo eyes beam. |
| Safety | Bottom safety
airbag(optional) |
Anytime the door is closing and the reversing edge the bottom bar makes contact with an object, and the door will move to the fully open position. |
| Opening Modes | Motion sensor, Induction loops, Remote control, Pull-rope switch, Push button |

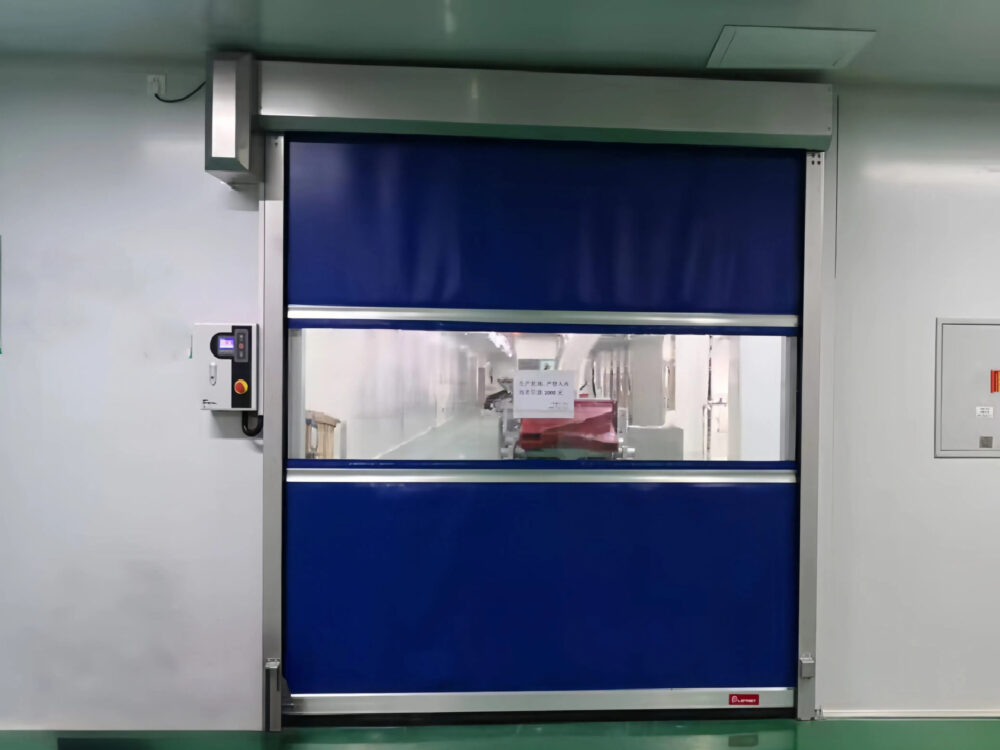

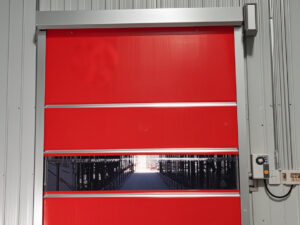

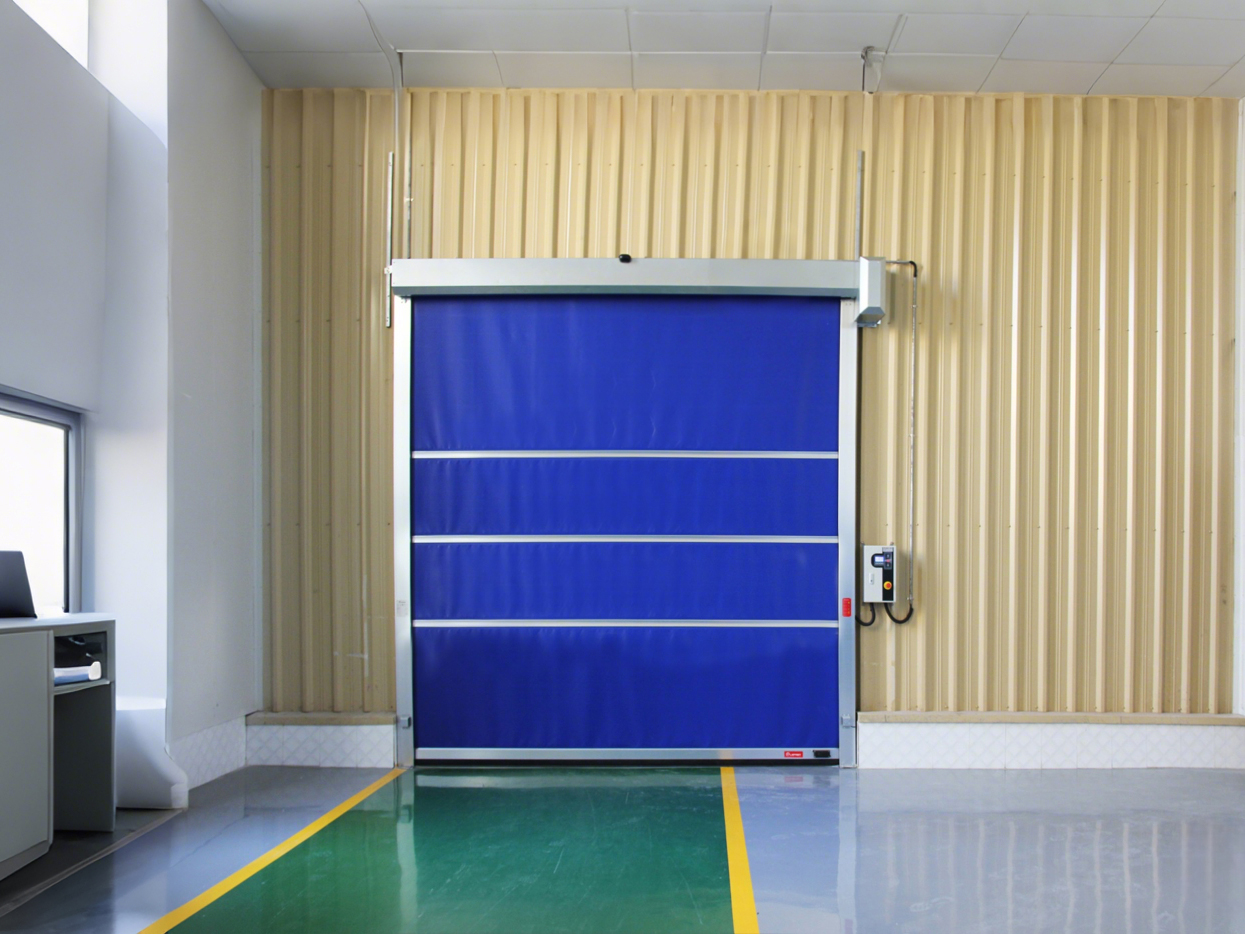

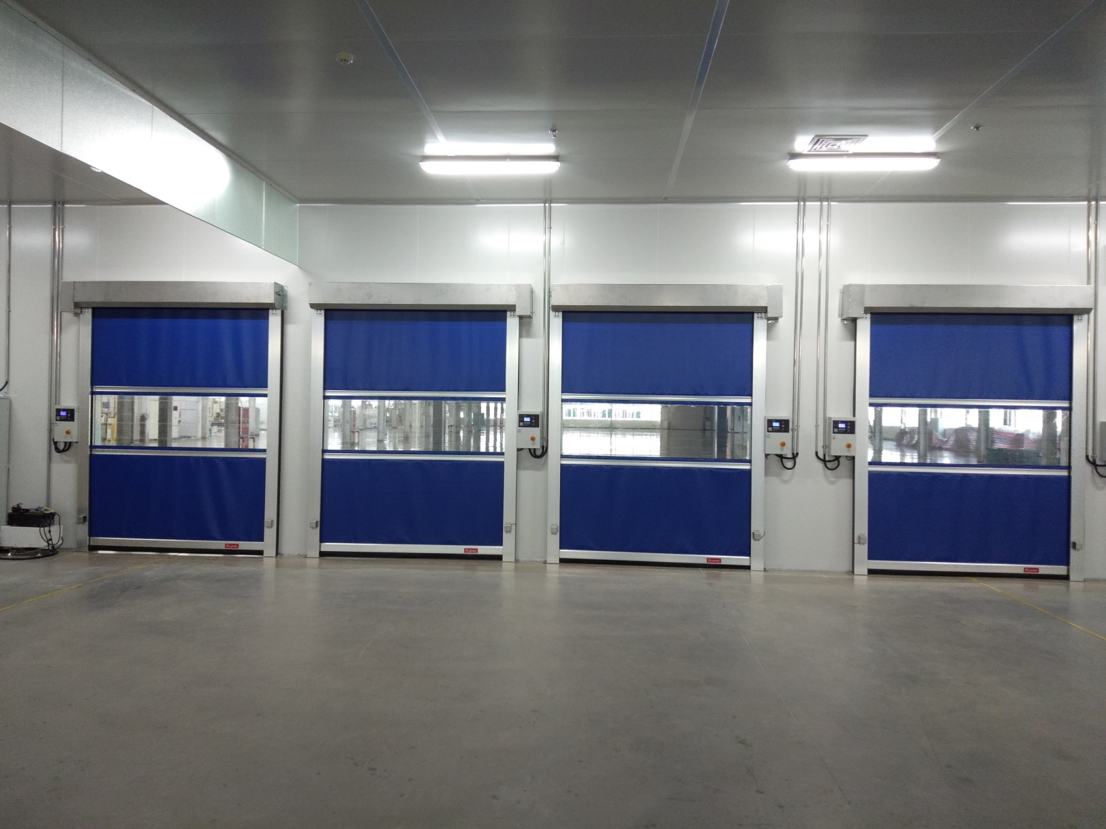

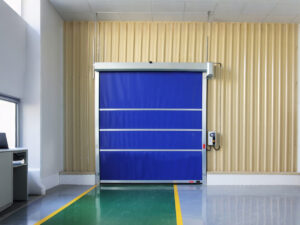

| HSR SERIES
HIGH SPEED ROLLING DOOR |
e.g. HSR1000 O.W.3000×O.H.3000
Quantity of winbars is based on the door size.
|
