| HSSD43 | HSSD80 | ||
| Door size in mm | Opening Width max.
Opening Height max. |
6,000
6,000 |
8,000
8,000 |
| Average speed | Opening in m/s variable
Closing in m/s variable |
0.8~2.1
0.6 |
0.8~1.0
0.6 |
| Wind load | Based on JG/T 302-2011 Class | 3 | 3 – 4 |
| K value maximum | in W/(m2K) based on
JG/T 302-2011 |
0.5 | >0.5 |
| Air permeability | in m3/(m2h)
based on GB/T 7106-2008 Class |
0.62
8 |
0.62
8 |
| Resistance against
water ingress |
in Pa
based on GB/T 7106-2008 Class |
700
6 |
700
6 |
| Door blade guidance | Round spiral
Oval spiral |
Upon request
Upon request |
Upon request
Upon request |
| Steel design | Galvanized sheet steel frame
Stainless steel frame |
Standard
Upon request |
Standard
Upon request |
| Door blade | LFT lath, double walled, insulated
Lath thickness Double walled transparent window |
Standard
43mm Upon request |
Standard
80mm Upon request |

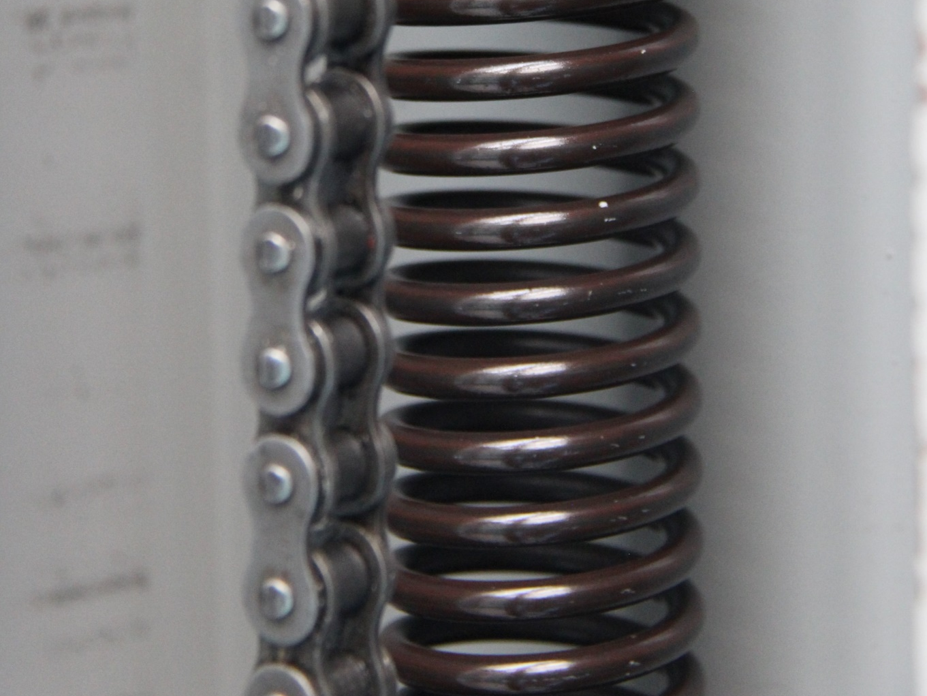

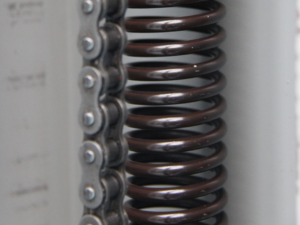

| Weight balancing by | Springs | Springs | |
| Drive | Servo motor with servo controller
Asynchronous motor with integrated controller |
Standard
Not available |
Standard
Upon door size |
| Control | Servo controller
Integrated controller |
Standard
Not available |
Standard
Upon door size |
| Power | 0.75kW 1.5kW 2.2kW | 1.5kW 2.2kW 3.0kW | |
| Lead | Electricity connection 220V/1-Phase/50Hz
Electricity connection 380V/3-Phase/50Hz |
Standard
Not available |
Standard
Upon door size |
| Emergency opening | Brake release handle | Standard | Standard |
| Safety Devices | Photo eyes
Light curtain Safety contact edge |
Standard
Upon request Standard |
Upon request
Standard Standard |

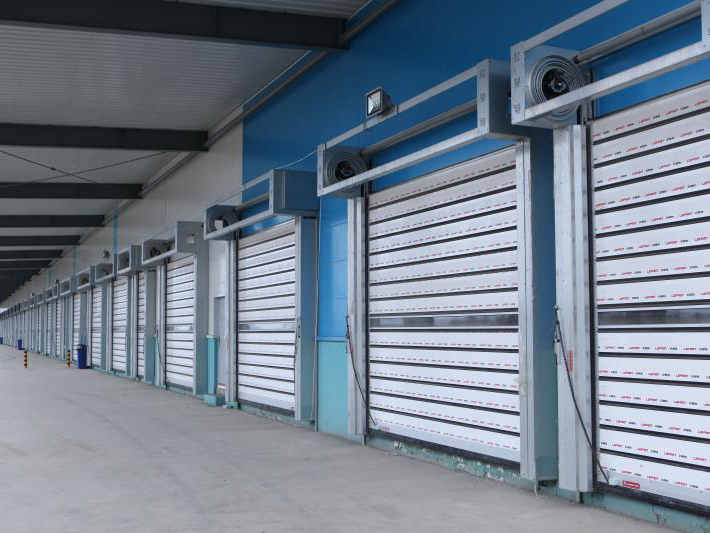

| Spiral |
|
The door laths will not be rolled upon each other but kept in a certain and space-saving distance from each other by the spiral.
High-speed spiral doors run smoothly without wear thanks to the spiral system and the mechanical principle can handle the challenges of heavy daily operation. |
| Round Spiral | Standard | The round spiral is standard and is the ideal solution if there’s enough space above the door |
| Oval Spiral | Optional | Oval, and thus space-saving designs are used in the limited-structural conditions. |

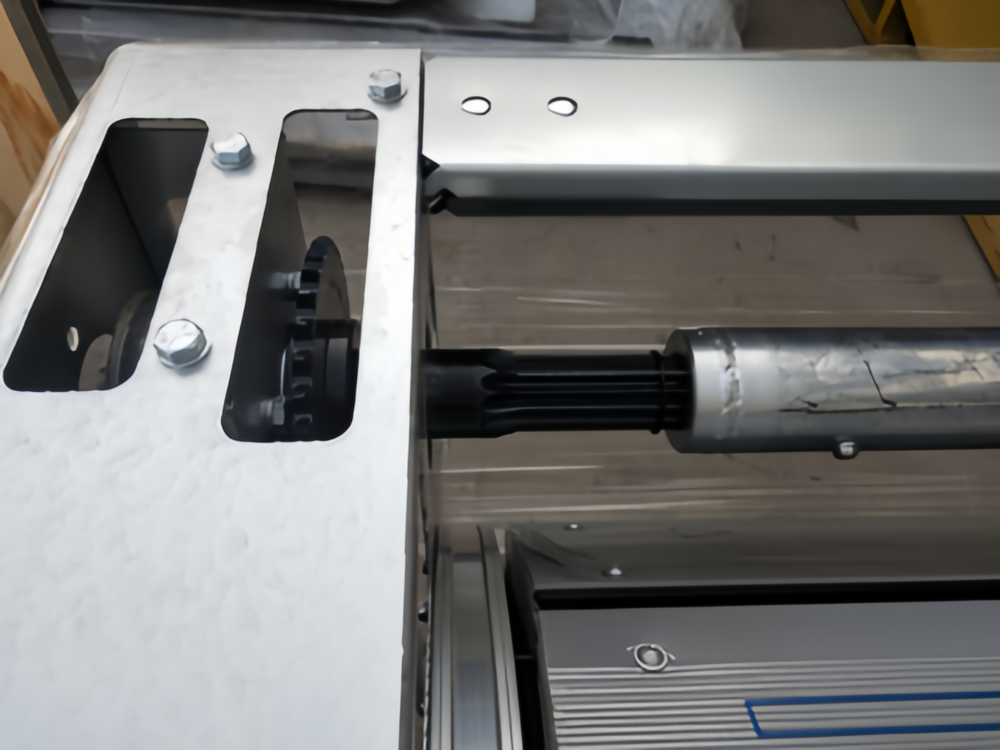

| Transmission Shaft |  |
Self-adjustable, retractable spline shaft
Maintenance-free, no risk of breakage, safer |

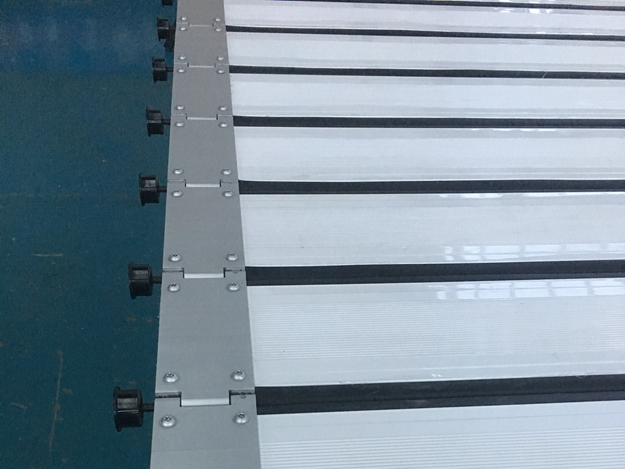

| Guide Structure
|

|
1) Hinge Screws: The surface of the screw is coated with Dacromet rust prevention treatment, resulting in better anti-corrosion, and the fixing method of screws and nuts can prevent screws from falling off.
2) Hinge: The hinge is made of high-quality aluminum material with a thickness of 6mm 3) Hinge Shaft: 40# steel is used to ensure strength. 4) Hinge Roller: The bearing is injection molded into the roller, fully wrapped to ensure that the bearing will never detach from the roller. 5) Hinge Shaft Sleeve: The unique shaft sleeve design adopts special materials, with high wear resistance and self-lubrication. 6) Guide Roller: Add guide rollers on the left and right sides of the door panel to control the installation accuracy of the door, thereby ensuring that there is no deviation. |
| Door panel |  |
Double-walled aluminum filled with polyurethane insulation material inside. Special broken bridge design. Thermally insulated.
The lath thickness is 43, 80 mm according to the size of the door or customer request. |
| Door panel color |  |
Standard colors: RAL7045 Grey, RAL9006 Silver, RAL9016 White, Aluminum |

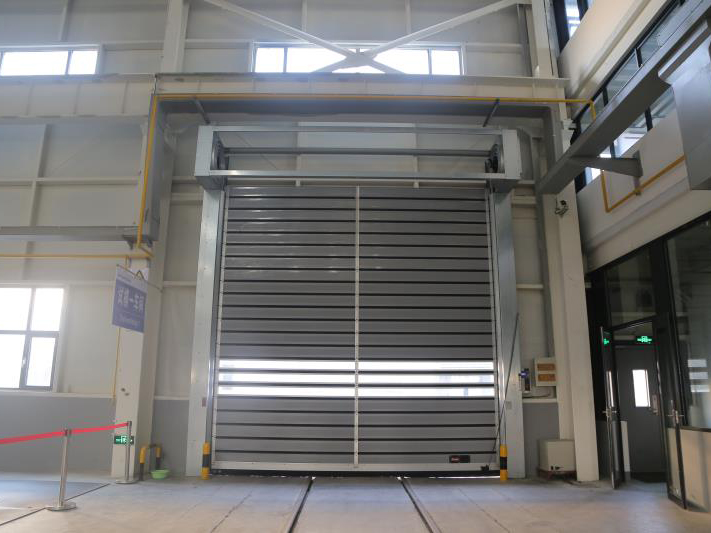

| Transparent
Window |
 |
Aluminum frame with double-layer polycarbonate plate, double-walled structure design.
A free view through the door gives you a decisive advantage: accidents are avoided and smooth transport process are guaranteed. |
| Header frame |  |
Galvanized sheet steel |
| Side Columns |  |
Galvanized sheet steel |
| Guide Rail | Spiral rail in spiral console
Vertical rail in side columns |
Aluminum
Steel |
| Sealing |  |
Side rubber seal: Soft-rigid co-extrusion rubber fit the door panel. Surface flocking treatment without noise
Middle rubber seal: EPDM Bottom rubber seal: EPDM Top brush seal It realizes good sealing performance. |
| Emergency opening
|
 |
Brake release handle.
It’s designed to act as a parking brake when the electrical power is turned off. Remove power to the control panel by placing the disconnect in the OFF position. Pulling open the brake release handle to be fully extended. Attempt to manually move the door panel. The door should slide freely and smoothly. |
| Safety | Photo Eyes/Light Curtain(Optional) | Photo eyes /Light Curtain act as a safety device to prevent the door from closing if an object or person is within the photo eyes beam. |
| Safety | Bottom safety
Airbag |
Anytime the door is closing and the reversing edge the bottom bar makes contact with an object, and the door will move to the fully open position. |
| Opening Modes | Motion sensor, Induction loops, Remote control, Pull-rope switch, Push button |
